Rule build_bus_regions#

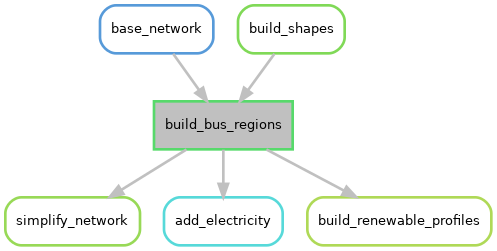

![digraph snakemake_dag {
graph [bgcolor=white,
margin=0,
size="8,5"
];
node [fontname=sans,
fontsize=10,
penwidth=2,
shape=box,
style=rounded
];
edge [color=grey,
penwidth=2
];
3 [color="0.25 0.6 0.85",
label=simplify_network];
4 [color="0.50 0.6 0.85",
label=add_electricity];
5 [color="0.36 0.6 0.85",
fillcolor=gray,
label=build_bus_regions,
style=filled];
5 -> 3;
5 -> 4;
9 [color="0.22 0.6 0.85",
label=build_renewable_profiles];
5 -> 9;
6 [color="0.58 0.6 0.85",
label=base_network];
6 -> 5;
8 [color="0.28 0.6 0.85",
label=build_shapes];
8 -> 5;
}](../_images/graphviz-16d70c43e7c36bdab13c4ac00d41e310fb912925.png)
Creates Voronoi shapes for each bus representing both onshore and offshore regions.
Relevant Settings#
countries:
See also
Documentation of the configuration file config.yaml at
Top-level configuration
Inputs#
resources/country_shapes.geojson: confer Rule build_shapesresources/offshore_shapes.geojson: confer Rule build_shapesnetworks/base.nc: confer Rule base_network
Outputs#
resources/regions_onshore.geojson:

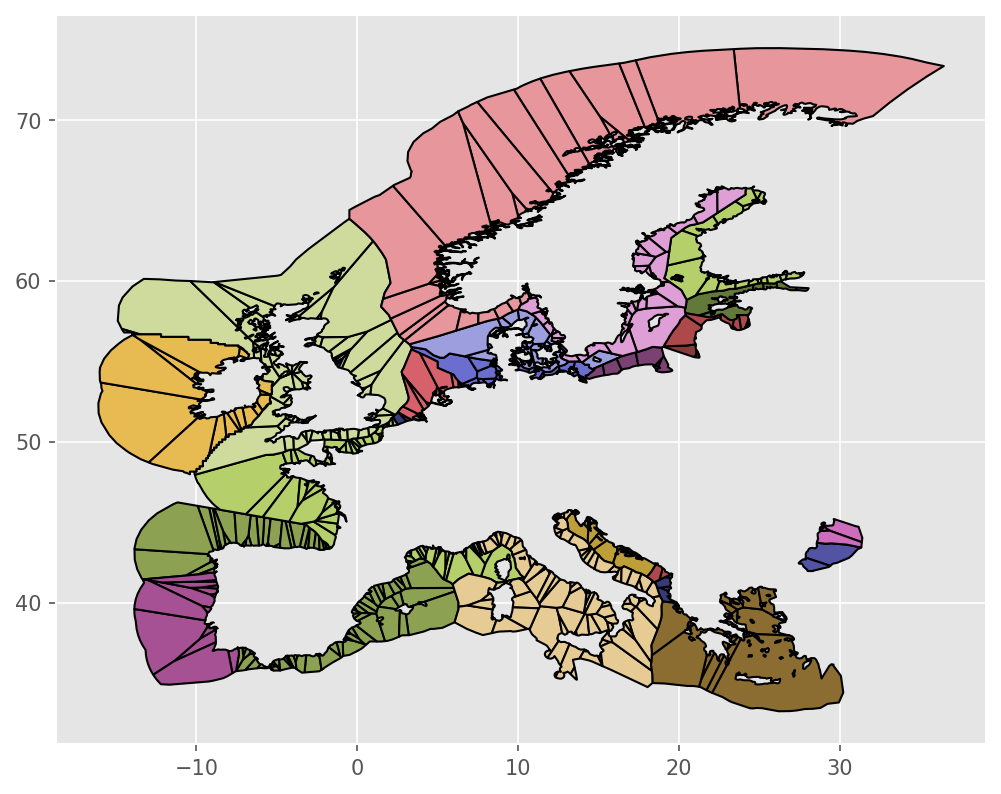

resources/regions_offshore.geojson:
