Rule plot_p_nom_max#

digraph snakemake_dag { graph [bgcolor=white, margin=0, size="8,5" ]; node [fontname=sans, fontsize=10, penwidth=2, shape=box, style=rounded ]; edge [color=grey, penwidth=2 ]; 0 [color="0.42 0.6 0.85", fillcolor=gray, label=plot_p_nom_max, style=filled]; 1 [color="0.58 0.6 0.85", label=cluster_network]; 1 -> 0; }

Rule make_summary#

digraph snakemake_dag { graph [bgcolor=white, margin=0, size="8,5" ]; node [fontname=sans, fontsize=10, penwidth=2, shape=box, style=rounded ]; edge [color=grey, penwidth=2 ]; 0 [color="0.47 0.6 0.85", fillcolor=gray, label=make_summary, style=filled]; 1 [color="0.11 0.6 0.85", label=solve_network]; 1 -> 0; }

Creates summaries of aggregated energy and costs as .csv files.

Relevant Settings#

..code:: yaml
costs:

USD2013_to_EUR2013: discountrate: marginal_cost: capital_cost:

electricity:

max_hours:

..seealso::

Documentation of the configuration file config.yaml at costs, electricity

Inputs#

Outputs#

Description#

The following rule can be used to summarize the results in separate .csv files: ..code:

snakemake results/summaries/elec_s_all_lall_Co2L-3H_all
                                     clusters
                                         line volume or cost cap
                                            - options
                                                    - all countries

the line volume/cost cap field can be set to one of the following: * lv1.25 for a particular line volume extension by 25% * lc1.25 for a line cost extension by 25 % * lall for all evaluated caps * lvall for all line volume caps * lcall for all line cost caps Replacing ‘/summaries/’ with ‘/plots/’ creates nice colored maps of the results.

Rule plot_summary#


Plots energy and cost summaries for solved networks.

Relevant Settings#

Inputs#

Outputs#

Description#

Rule plot_network#

digraph snakemake_dag { graph [bgcolor=white, margin=0, size="8,5" ]; node [fontname=sans, fontsize=10, penwidth=2, shape=box, style=rounded ]; edge [color=grey, penwidth=2 ]; 0 [color="0.00 0.6 0.85", fillcolor=gray, label=plot_network, style=filled]; 1 [color="0.50 0.6 0.85", label=solve_network]; 1 -> 0; }

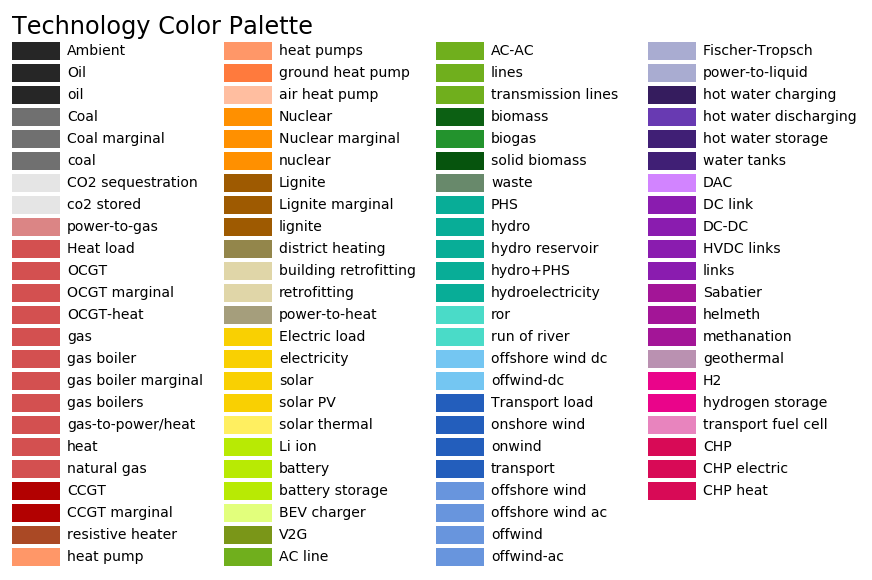

_images/tech-colors.png
