PyPSA-Earth CLI

The PyPSA-Earth CLI is an interactive, menu-driven command line application that helps new users navigate the workflow without having to hand-edit YAML files or memorize snakemake commands. It is built with typer, InquirerPy and rich, and lives at scripts/non_workflow/pypsa_earth_cli.py.

The CLI is organized as a main menu with four modules: a Quiz Zone built around the use-case tutorials, a Configuration Setup wizard, a Data Retrieval checker, and a Run Model launcher.

Environment

The CLI's dependencies (typer, inquirerpy, rich) are not part of the default pypsa-earth environment. They are bundled in the dedicated pypsa-earth-cli pixi environment.

Launching the CLI

The recommended way to launch the CLI is with the cli pixi task, which is scoped to the pypsa-earth-cli feature/environment:

.../pypsa-earth % pixi run pypsa-earth-cli

Pixi automatically installs and activates the environment — this is equivalent to:

.../pypsa-earth % pixi run -e pypsa-earth-cli python scripts/non_workflow/pypsa_earth_cli.py

Currently, the CLI is not supported with conda.

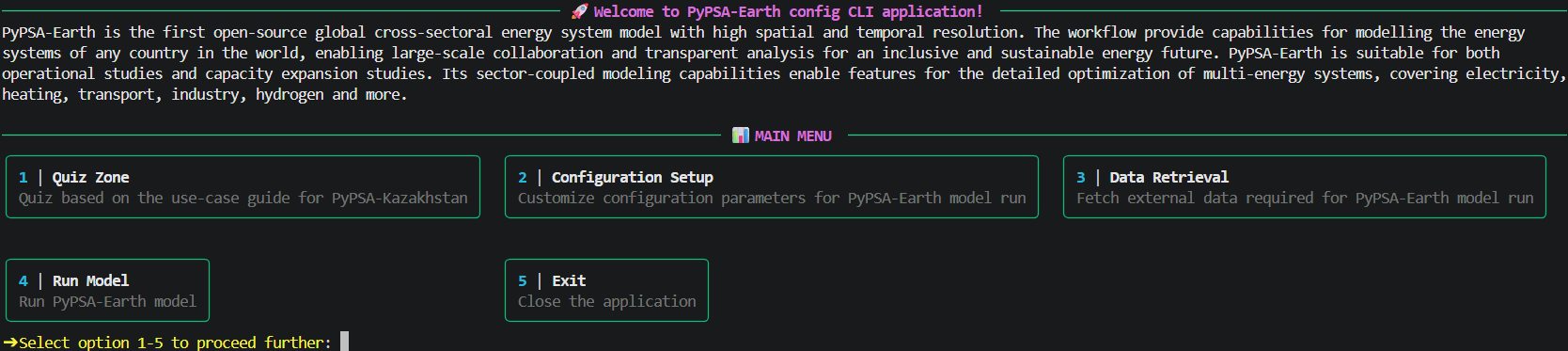

Running the script with no arguments prints a welcome message and opens the interactive main menu as seen in the following image.

PyPSA-Earth CLI main menu

Each module is also exposed as a typer subcommand, so it can be jumped to directly:

.../pypsa-earth % pixi run -e pypsa-earth-cli python scripts/non_workflow/pypsa_earth_cli.py quiz_zone
.../pypsa-earth % pixi run -e pypsa-earth-cli python scripts/non_workflow/pypsa_earth_cli.py config-setup
.../pypsa-earth % pixi run -e pypsa-earth-cli python scripts/non_workflow/pypsa_earth_cli.py run-model

Tip: Append --help to list all available subcommands and options, e.g. python scripts/non_workflow/pypsa_earth_cli.py --help.

# Module Description
1 Quiz Zone Quiz based on the use-case guide for PyPSA-Kazakhstan
2 Configuration Setup Customize configuration parameters for a PyPSA-Earth model run
3 Data Retrieval Fetch external data required for a PyPSA-Earth model run
4 Run Model Run the PyPSA-Earth model
5 Exit Close the application

Modules

1. Quiz Zone (quiz_zone)

An interactive quiz that mirrors the PyPSA-Kazakhstan use-case documentation, split into eight use-cases: Baseline model, Analyze results, Demand, Generation, Transmission, CO2 limits, Costs, and Return (to the main menu). Questions and answers are defined in configs/pypsa_earth_cli/tutorial_questions.yaml.

For each question, the user is prompted (free text or a multiple-choice menu) until the correct answer is entered, and can optionally request a hint if one is defined. Scoring per question starts at 1 point, with a 0.25-point penalty for each wrong attempt and a further 0.25-point penalty if a hint is requested; the score is capped between 0 and 1 and summed across the module.

For some of the quiz modules for e.g., the "Baseline model" use-case, the answers are also mapped onto config parameters: once the questionnaire is completed, the CLI asks for a run name and a solver choice and writes the result to config.KZ.yaml, then offers to launch the model run immediately (module 4) with that file.

2. Configuration Setup (config-setup)

A guided editor for config.default.yaml that avoids exposing the full config file at once. The workflow is:

  1. Select a user group, defined in configs/pypsa_earth_cli/user_groups.yaml, which determines which top-level config sections are shown:
User group Config sections exposed
Sandbox countries, enable, run, scenario, snapshots
Specialist countries, enable, run, scenario, snapshots, foresight, cluster_options, build_shape_options, clean_osm_data_options
Strategist results_dir, summary_dir, countries, enable, custom_data
  1. Pick a config option from that list. Nested options (e.g. scenario) open a submenu of their flattened child parameters (e.g. scenario.simpl, scenario.ll, scenario.clusters); flat options are edited directly.
  2. Enter a new value for the selected parameter. Values for parameters that are lists in the original config are split on , into a list.
  3. Repeat, or select return to main menu to finish.

The updated configuration is written to config.cli_updated.yaml, leaving config.default.yaml untouched.

Note: To add or change which parameters a user group can edit, modify configs/pypsa_earth_cli/user_groups.yaml.

3. Data Retrieval

Launches scripts/non_workflow/databundle_cli.py as a subprocess. It checks the databundles listed in the active config against the files already present on disk, prints a checklist table (files present are shown in green, missing files in red), and lets the user interactively retrieve missing data:

  • check — refresh the checklist
  • all — retrieve all missing databundles
  • rerun — retrieve every databundle again
  • bundle_... — retrieve one or more specific databundles by name
  • Enter (empty input) — exit the retrieval loop

See Retrieve Data Bundle for details on the underlying databundle configuration.

4. Run Model (run-model)

Runs the tutorial electricity model via snakemake. The user is prompted for:

  • a config file (any config*.yaml file found in the repository root, or the path passed to run-model programmatically),
  • the number of cores to use,
  • whether to run through pixi or conda.

The CLI always targets the solve_all_networks rule and builds the equivalent command, for example:

pixi run snakemake -c 4 solve_all_networks --configfile config.KZ.yaml --rerun-incomplete

Note: run-model is scoped to the elec-only tutorial workflow (solve_all_networks). For other targets, run snakemake directly as described in Running Models.

5. Exit

Prints a farewell message and closes the CLI.

  • CLI entry point: scripts/non_workflow/pypsa_earth_cli.py
  • Data retrieval submodule: scripts/non_workflow/databundle_cli.py
  • Quiz questions: configs/pypsa_earth_cli/tutorial_questions.yaml
  • User group definitions: configs/pypsa_earth_cli/user_groups.yaml
  • Environment definition: pixi.toml (pypsa-earth-cli feature/environment)
