Part 6: Fix Isolated Nodes and Load Shedding¶
Note
This tutorial assumes you have completed Part 1 through Part 5. Your config.KZ.yaml should include the Part 3 demand settings, the Part 4 generation fleet, and the Part 5 cost overrides. Lastly, you should have a solved network at results/KZ/networks/elec_s_10_ec_lcopt_6h.nc.
Introduction¶
By the end of Part 4 the fleet matched KEGOC's 2020 capacities. Part 5 then replaced generic technology-data costs with sourced Kazakhstan fuel and O&M data, and found that country-specific economics still favor coal, so the coal/gas split is not primarily a costs problem. The model still sheds about 7.7 TWh of load which is roughly 7–8% of Kazakhstan's annual demand, essentially unchanged since Part 4. Load shedding means that the optimiser could not serve demand at some buses in some hours, so it "dropped" the load for these hours at a very high penalty price. A validated fleet with country-specific dispatch economics that still sheds load is a signal that the problem is not generation or dispatch economics but the network the generation sits on.
In this tutorial we diagnose the cause, one or more electrically isolated sub-networks, and fix it by changing how simplification handles islands. This is the fastest lever: it re-runs in minutes and does not touch the OSM base network.
A PyPSA sub-network
Using n.determine_network_topology(), each bus in the network is assigned a sub_network label. Buses in the same sub_network are electrically connected; buses in different sub-networks cannot exchange power. A healthy country model has one dominant AC sub-network (the "backbone") carrying almost all load.
Everything in this part lives under clustering.simplify_network in the config and the simplify_network rule. It does not change the demand, the fleet, or the cost overrides.
Where isolation comes from¶
PyPSA-Earth builds the transmission grid from OpenStreetMap (OSM), volunteer-mapped substations and power lines, downloaded in Part 1. The model topology is derived from OSM data when it was downloaded, not an official KEGOC schematic.
The relevant rules in the workflow are as follows:
build_demand_profiles → splits national demand across every substation bus
↓ (weighted by population and GDP, no grid check)
simplify_network → merges/clusters buses, then handles leftover islands
↓
… cluster, prepare, solve …
Two facts about that workflow combine to create the isolation:
build_demand_profilestakes the national annual total and distributes it across all substation buses using population and GDP weights, regardless on whether they are connected or not to the grid. Note that isolated networks may exist and appropriate tuning is recommended to capture the actual network under consideration.- If OSM has no information of some lines or some geometries are incomplete, the OSM-derived network may artificially disconnect a portion of the network from another portion. In this case, each independent region defines its own sub-network (an electrical island). It still carries its share of demand, but no energy exchange is enabled and as such the demand of each sub-network must be fed with the generation available in the same sub-network.
When an island's local generation cannot cover its local demand, the optimiser has no way to import power across the missing lines, so it sheds the unmet load. Nationally the capacity and demand totals look fine, but part of the country is starved.
Step 1: See the island on a map¶
Open your Part 2 notebook (analyze_kz.ipynb) and reload the solved network. First, colour buses by whether they belong to the main grid or to an island:
import pypsa
import matplotlib.pyplot as plt
n = pypsa.Network("results/KZ/networks/elec_s_10_ec_lcopt_6h.nc")
n.determine_network_topology()
# The backbone is the sub-network carrying the most load
load_by_sub = n.loads_t.p_set.mean().groupby(n.buses.sub_network).sum()
backbone = load_by_sub.idxmax()
is_isolated = n.buses.sub_network != backbone
bus_colors = is_isolated.map({True: "crimson", False: "seagreen"})
# Map extent: [lon_min, lon_max, lat_min, lat_max], frame Kazakhstan
boundaries = [46, 88, 40, 56]
n.plot(
bus_colors=bus_colors,
bus_sizes=0.03,
line_colors="lightgray",
boundaries=boundaries,
title="Green = main grid | Red = isolated",
)
plt.show()
Any red bus is electrically isolated from the green backbone: load there cannot import power from the rest of the grid. You may see one red bus rather than a whole western region; Step 3 explains why. After the fix in Step 4, re-plot; you should see no red buses.

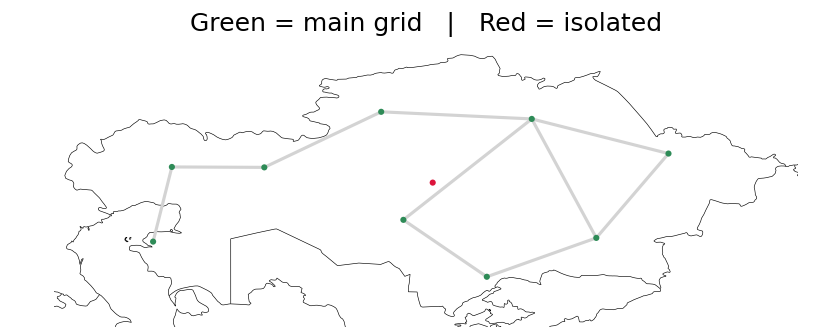

Green = main grid; red = isolated bus. Example from the Part 5 solved network with default simplification settings.
Step 2: Confirm load shedding on the island¶
The map shows where the problem is. Confirm that the ~7.7 TWh load shedding carried over from Part 4 (unchanged by Part 5's cost update) sits on the red sub-network, not on the green backbone.
Load-shedding generators are named <bus> load:
weights = n.snapshot_weightings.generators
shed = n.generators_t.p.filter(like="load").multiply(weights, axis=0).sum() / 1e6 # TWh
shed_by_sub = shed.groupby(
n.generators.loc[shed.index, "bus"].map(n.buses.sub_network)
).sum()
print(shed_by_sub[shed_by_sub > 0].round(2))
Expected output is a shedding on the isolated sub-network only (the backbone should not appear):
The index is the sub_network id from Step 1 (the red bus). ~7.7 TWh here matches Part 4's ~7.7 TWh total load shedding: almost all unmet load sits on that one island, not on the green backbone. Your exact number may differ slightly depending on your Part 5 costs.marginal_cost values, but the story, nearly all shedding on the isolated island, should hold.
Step 3: The three isolation thresholds¶
Simplification has three settings for isolated sub-networks under clustering.simplify_network:
| Parameter | Unit | What it does |
|---|---|---|
p_threshold_drop_isolated |
MW (mean load) | Deletes islands whose total mean load is below the threshold. The load disappears from the model. |
p_threshold_merge_isolated |
MW (mean load) | Collapses small islands into one isolated bus per country, still disconnected from the backbone. |
s_threshold_fetch_isolated |
share of country load | Attaches islands whose share is below the threshold to the nearest backbone bus, creating an electrical connection. |
The critical distinction:
dropremoves load (avoids shedding by throwing demand away).mergeis the default trap (p_threshold_merge_isolated: 300inconfig.default.yaml): it collapses many small islands into one isolated bus per country. That bus still cannot import power, so it still sheds, and it can hold a large share of national load (e.g. ~7%).fetchis the actual fix: it wires stranded load onto the closest connected bus so the backbone's generation can serve it.
Defaults in config.default.yaml: merge is on (300 MW) and fetch is off (false). Nothing reconnects stranded islands, which is why load shedding persists after Part 4 (and Part 5's cost update does not change that; it is a connectivity problem, not a price problem).
This is a modelling simplification, not a physical line
fetch does not build a physical line. It re-assigns the stranded load (and any generation) to the geographically nearest connected bus so the linear program can balance it. The load is served, but its electrical location is approximated: a modelling shortcut, not a physical grid connection.
Step 4: Settings for Kazakhstan¶
1. p_threshold_drop_isolated: false: do not delete islands.
drop runs first, before merge or fetch, and removes buses by mean load on the sub-network, not by generation. In KZ, large hydro plants (e.g. East Kazakhstan's Bukhtarma, Ust-Kamenogorsk, Shulbinskaya) can sit on OSM islands with little assigned demand. With a MW threshold (the default is 20), those buses, and all attached power plants, would be deleted before fetch (below) ever gets a chance to reconnect them.
Keep drop off for KZ. Use fetch to reconnect stranded load; do not throw away stranded generation.
2. p_threshold_merge_isolated: false: stop stacking islands.
The default merges islands below 300 MW mean load onto one stranded bus per country. For KZ that stacks much of the western pocket into a single ~7% island that still cannot import power:
3. s_threshold_fetch_isolated: 0.05: turn fetch on.
Fetch is false by default: it does nothing until you set a share threshold. 0.05 reconnects any island below 5% of national load to the nearest backbone bus. With drop and merge both off, the western fragments in KZ survive intact and are each below 5%:
Step 5: Add the settings to config.KZ.yaml¶
Add a clustering block:
clustering:
simplify_network:
p_threshold_drop_isolated: false # do not delete low-load islands
p_threshold_merge_isolated: false # do not stack islands on one stranded bus
s_threshold_fetch_isolated: 0.05 # fetch is off by default; reconnect islands < 5% of national load
You can download the file and merge it with your existing config.KZ.yaml, or add the clustering block by hand.
Step 6: Re-run the workflow¶
Run the same target as before:
Expected runtime: a few minutes, much faster than Part 1. OSM data, cutouts, demand profiles, and the powerplant list stay cached from earlier parts.
Step 7: Verify the fix¶
Reload the solved network and check total load shedding (Step 2 only breaks it down by island; here you want the national total near zero) and annual demand (same as Part 2):
weights = n.snapshot_weightings.generators
total_TWh = n.loads_t.p_set.multiply(weights, axis=0).sum().sum() / 1e6
shed_TWh = (
n.generators_t.p.filter(like="load").multiply(weights, axis=0).sum().sum() / 1e6
)
print(f"Total annual demand: {total_TWh:.2f} TWh")
print(f"Load shedding: {shed_TWh:.2f} TWh") # expect ~0
Example after the Part 6 fix (with scale: 1.005 from Part 3 still in place):
Load shedding at 0 confirms the island fix. Demand above KEGOC 107.3 TWh is expected: fetch puts regional load back on the main grid (Part 3's scale was tuned when that load was missing), and scale: 1.005 still sits on top of the native GEGIS total (~108 TWh). Step 8 below recalibrates scale now that this total is settled.
Optionally, re-run the installed capacity check from Part 2 (same n.statistics() call). Compare hydro against the KEGOC 2020 table; they should stay aligned with the Part 4 fleet. This is a useful sanity check because p_threshold_drop_isolated can delete low-load islands before fetch runs, and that may remove large hydro plants that happen to sit on those islands.

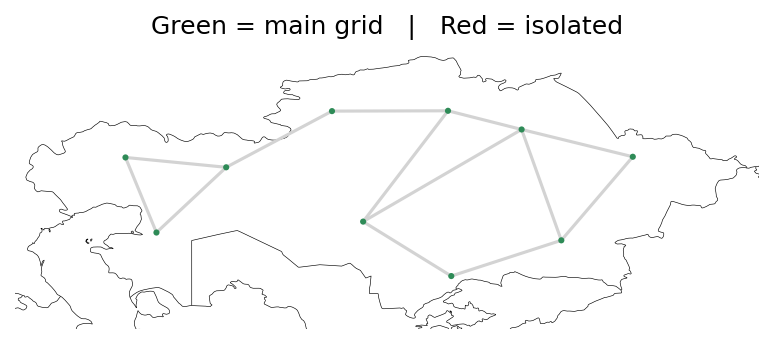

All green; no isolated buses after fetch. The map may also show a different line layout than the before-fix figure: that is expected. Keeping the former islands and attaching their load and generation to nearby backbone buses changes how buses are grouped in later clustering, so the displayed topology can change.
Step 8: Final calibration of scale¶
Part 3's scale: 1.005 bundled two gaps into one multiplier: GEGIS vs KEGOC statistics, and demand that vanished under the old default p_threshold_drop_isolated: 20 (which deleted whole islands, load included). Step 4 above turns drop off for good, so no demand can be deleted during simplification anymore, here or later. That makes this the right point to do the final recalibration: scale is applied to the national total before it is ever split across buses, so nothing in Part 7's later transmission-network rebuild (different voltages, line types, ratings) changes this total any further.
Rescale once from your Step 7 total:
target_TWh = 107.34 # KEGOC 2020
measured_TWh = 108.54 # Step 7 total
new_scale = 1.005 * target_TWh / measured_TWh
print(f"scale: {new_scale:.4f}") # → 0.9939
1.005 × 107.34 / 108.54 gives 0.9939, which rounds to 0.994.
Re-run the workflow if you change scale. Load shedding should stay at 0.00 TWh: scaling demand down slightly does not re-isolate any buses.
Recap¶
| Step | Config key | Value | Role |
|---|---|---|---|
| 4 | clustering.simplify_network.p_threshold_drop_isolated |
false |
Do not delete low-load islands (preserves hydro and other plants on OSM artefacts) |
| 4 | clustering.simplify_network.p_threshold_merge_isolated |
false |
Do not collapse islands onto one stranded bus (default 300 MW) |
| 4 | clustering.simplify_network.s_threshold_fetch_isolated |
0.05 |
Attach islands below 5% of national load to the nearest backbone bus |
| 8 | load_options.scale |
0.994 (from 1.005 × 107.34/108.54) |
Final match to 107.34 TWh now that demand no longer gets dropped |
Load shedding caused by electrical islands is resolved: the stranded demand is now wired onto the main grid and served by national generation. p_threshold_drop_isolated: false also keeps power plants on low-load islands in the model, so installed capacity, in particular hydro, stays aligned with the Part 4 fleet instead of being deleted during simplification. This is a simplification-level fix: fast and effective, but it approximates where that load connects. With demand now settled, scale: 0.994 is final; Part 7 carries it forward unchanged.
In Part 7 we improve how the base transmission network is built from OSM (KZ voltage levels and line ratings). Part 6 settings remain useful for any islands OSM still misses.
